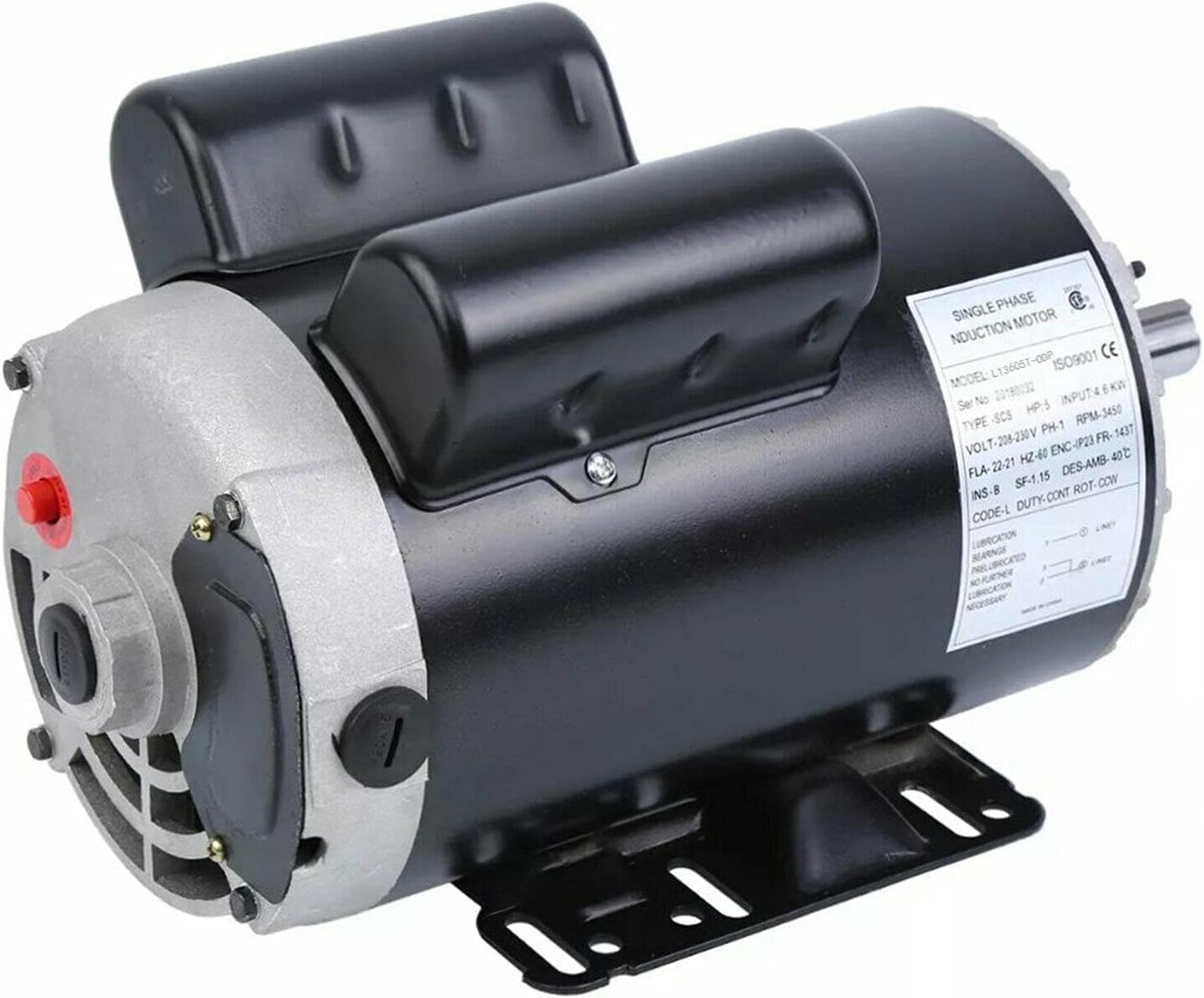

5HP Single Phase Electric Compressor Motor, 3450RPM 7/8" Shaft Diameter Air Compressor Electric Motor (208-230V)

Specifications:Horsepower (HP): 5 HpAC Frequency Rating: 60 HzFrame Size: 143/5TBase RPM: 3450Volt: 208-230VINPUT: 4.6kWService Factor: 1.15Full Load Amps: 22-21Shaft Diameter: 7/8 inchShaft Length: 2.25inShaft Type: KeyedENC: IP23FR: 143TAC Phase: Single PhaseReversible/Non-Reversible: Non-ReversibleROT: CCWOverload: Yes / Manual reset buttonAdditional Product Information: Rigid Base - CL B Insulation 40 C / 104 F Ambient TempPackage includes:1*Air Compressor MotorAttention:Not all 5-hp motors are exactly the same. So, with the new motor you're purchasing, it's vitally important that you match up the specs on your old motor. All of the information you need to know can be found right on your electric motor's nameplate/sticker, which usually can be found on the side of the motor.Note:1: AmperageThis is your electric motor's TRUE power rating. HP ratings have been made suspect over the years by large retailers who like to use "peak HP" or " SPL " in their terminology. The Motor's amp rating does not lie. Please make sure your FL amp (FULL LOAD) rating on the motor you're replacing is within 10% of the FL Amp rating of the motor you intend to buy.Example: If your current motor says 21 FL amps at 230VAC. Then you would be safe replacing your motor with a 19FL amp thru 23 FL amp electric motor 230volt.2: Frame SizeThe frame not only constitutes the bolt pattern but also depicts the overall size and torque. The larger the frame, the stronger the motor. If the current motor you're replacing shows 56, 143T, or 145T on the nameplate. It's extremely important that you replace it with that frame size. Improperly sized motors will inevitably result

• Fast Heat Dissipation: The air compressor motor has multiple heat dissipation holes so it has excellent heat dissipation performance. It can prevent foreign objects from being caught in the motor.
• Manual Overload Protection: The heavy-duty electric motor adopts capacitor housing and conduit boxes to protect all environments, and the low-temperature manual overload protector protects against extreme overload.
• High Speed: The compressor duty motor can CHE at the rated speed of 3450 RPM with high working efficiency. CHEs with 5HP. Shaft Diameter: 7/8", Shaft Length: 2.25".
• Single Phase Electric Compressor Motor: The compact and small-sized electric compressor motor features output 5HP, 143/5T Frame, and single phase. A robust and reliable metal material shell protects the inner circuit from thermal overloading.
• Mounting Bracket Included: Robust mounting bracket is included in the package, used for enlarging the motor's stability and reducing any friction. The ball bearing system is also applied for multiple applications.
