GuangHuiy Resistors 100pcs/Box RM065 Potentiometer Adjustable Resistor Kit 500-1M Ohm Multiturn Trimmer Potentiometer Set Variable Resistors Kit Fixed Resistors

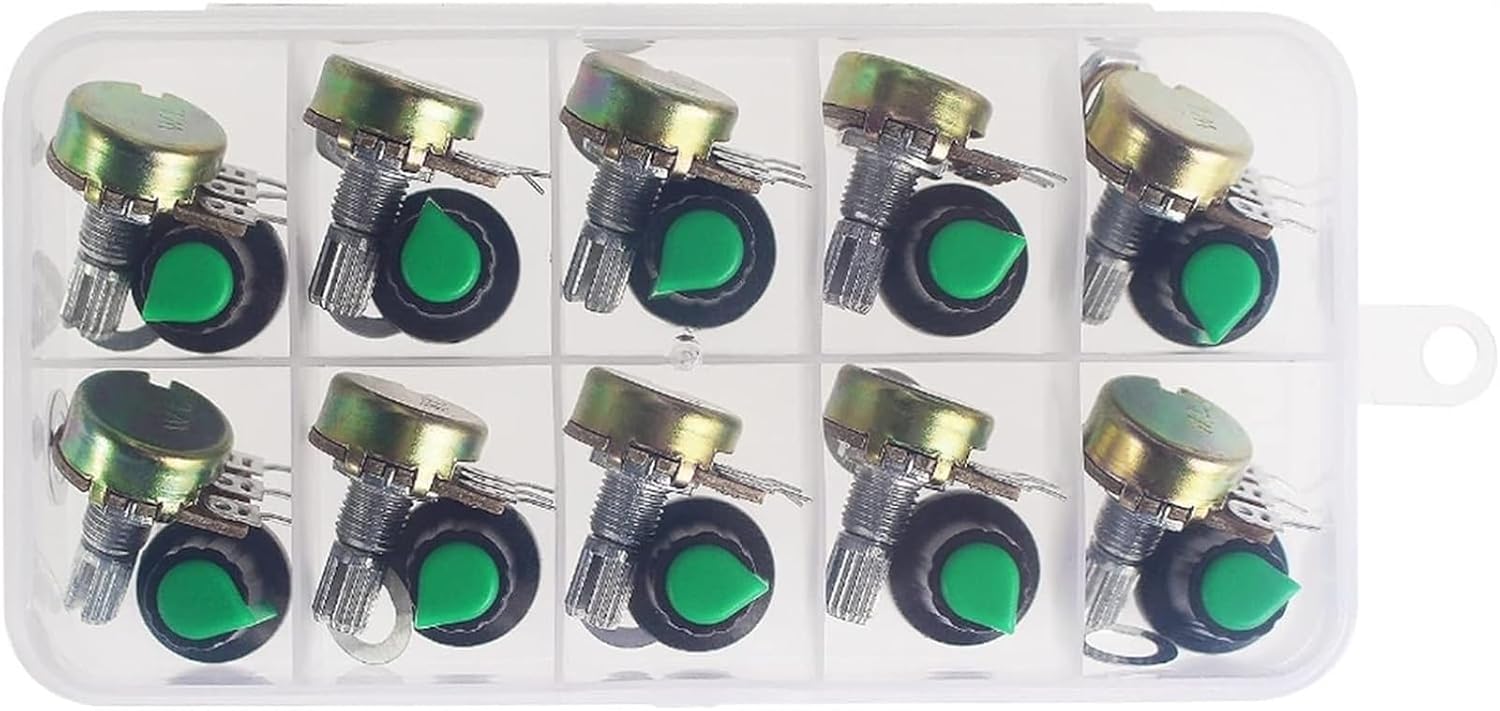

Potentiometers10PCS/Box WH148 Linear Potentiometer 15mm 3pin 1K 2K 5K 10K 20K 50K 100K 250K 1M with green AG2 Knob Cap Potentiometers KitProduct Feature:and Name: WH148 PotentiometerProduct introduction:1. Potentiometer is an adjustable electronic component. It consists of a resistance body and a rotating or sliding system. By manually adjusting the shaft or sliding handle, change the moving contact in the resistance body. The position of, then changes the resistance value between the moving contact and any fixed end, thus changing the size of the voltage and current.2. Single potentiometer is a kind of resistance substrate made of regulation potentiometer in potentiometer is obtainedCloud input voltage (voltage) into a certain relationship to the output potentiometer, the potentiometer volume, powerLarge, sliding visual intuitive, can also be used as a current limiter.Parameters:1. Rotation Angle: 300°± 10°2. Rotating : 10~ 200gf.com3. Stop : 6.0kgf.cn Min4. Axial push-pull : 8.0kgf,cm5. Registration points: Center, 7/11/21/41 Detent6. Electrical of point position: 50~ 150gf.cm7. Resistance range: 10k~1M8. Resistance tolerance: ±20% (more than 1M±30%)9. Load power: Curve B: 0.05W, other yhan B: 0.025W10. Use voltage: Curve B:50VDC other than B:25V AV11. Residual short rent: R25K 0.1%max, of total tesistance12. 250K>R> 10K 20max 20 K R 10K max13. Insulation resistance: More than 100M at DC 250V 1minute14. Withstand voltage: 1 minute AC 250V<;;±3dB16. Rotating noise: less than 100mV17. Rotation life: 10,000 cyclesPackage List:10PCS/Box WH148 Potentiometer wiht AG2 Knob CapProduct application:Widely used in electrical equipment, audio equipment, communications, medical facilities, security productsUPS power supply, video recorder, MP3, VCD player, telephone and other equipment
